Semroc-Trident.rkt Freeform Fin Freeform Fin Set| Manufacturer: | Semroc | | Part Number: | FV-71 | | Style: | Freeform Fin Set | | Material: | Balsa |

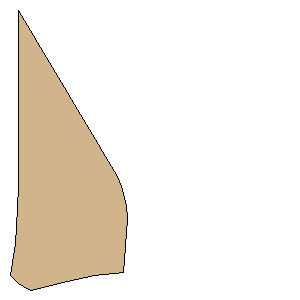

Download as PDF | Point 1: | (0.0000 mm, 74.0918 mm) | | Point 2: | (0.0000 mm, 86.3600 mm) | | Point 3: | (-0.8128 mm, 105.7150 mm) | | Point 4: | (-1.3462 mm, 113.5380 mm) | | Point 5: | (-3.9624 mm, 129.4640 mm) | | Point 6: | (0.3810 mm, 133.3500 mm) | | Point 7: | (5.8420 mm, 136.3980 mm) | | Point 8: | (10.5156 mm, 135.8900 mm) | | Point 9: | (24.0284 mm, 132.3340 mm) | | Point 10: | (37.4142 mm, 129.4640 mm) | | Point 11: | (51.3080 mm, 127.6860 mm) | | Point 12: | (53.1876 mm, 102.1080 mm) | | Point 13: | (52.8320 mm, 94.9960 mm) | | Point 14: | (50.5460 mm, 85.8520 mm) | | Point 15: | (48.2600 mm, 81.2800 mm) | | Point 16: | (0.0000 mm, 0.0000 mm) | | Width: | 3.0730 inches (78.0542 mm) | | Height: | 5.3700 inches (136.3980 mm) |
