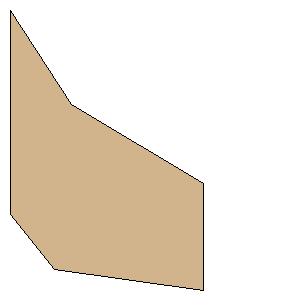

Semroc-SLS Jaguar.rkt Freeform F Freeform Fin Set| Manufacturer: | Semroc | | Part Number: | FV-52 | | Style: | Freeform Fin Set | | Material: | Basswood |
Download as PDF | Point 1: | (0.0000 mm, 63.7540 mm) | | Point 2: | (13.9700 mm, 81.0260 mm) | | Point 3: | (60.3250 mm, 87.3760 mm) | | Point 4: | (60.3250 mm, 54.1020 mm) | | Point 5: | (19.0500 mm, 29.5910 mm) | | Point 6: | (0.0000 mm, 0.0000 mm) | | Width: | 2.5100 inches (63.7540 mm) | | Height: | 3.4400 inches (87.3760 mm) |
