Semroc-SST%20Shuttle-1.rkt Rocksim Design File

Visit www.semroc.com to download Semroc-SST%20Shuttle-1.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

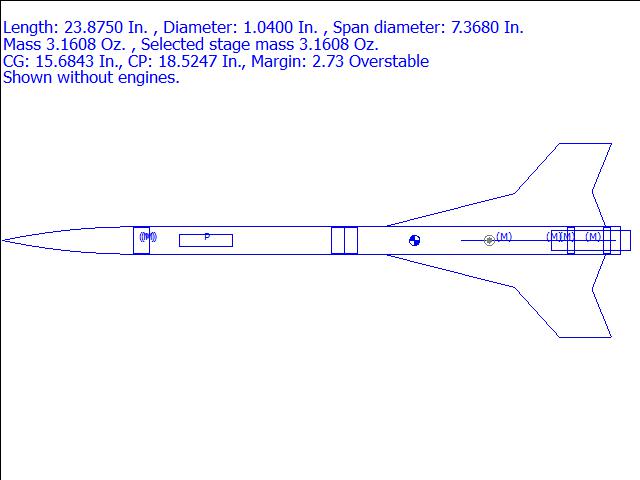

CG: 15.6843 inches from front
CP: 18.5247 inches from front
Margin: 2.73 Overstable

Parts Breakdown

• Semroc-SST Shuttle-1.rkt Ogive Nose Cone
• Semroc SE-10 Screw Eye Mass Object
• Semroc Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.00 in]
• Semroc HTC-10 Ring
• Semroc Polyethylene LDPE Parachute (12.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.50 in]
• Semroc-SST Shuttle-1.rkt Freefor Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Semroc CR-710 Ring
• Semroc CR-710 Ring
• Semroc EH-28 Engine Hook Standard Mass Object
• Semroc-SST Shuttle-1.rkt Freefor Freeform Fin Set
• Semroc Mass Object
• Semroc Mass Object
• Semroc Mass Object
