aerotech_hvarcas.rkt Rocksim Design File

Contributed by Mark Saunders

• Designer: Dan Meyer
• Designer: Marc McReynolds
• Manufacturer: Aerotech
• Power: Mid-Power
• Recovery: Parachute
• Scale: Arcas
• Style: Sport

Download aerotech_hvarcas.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

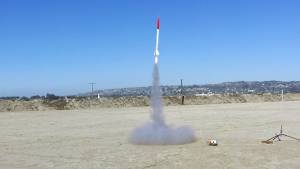

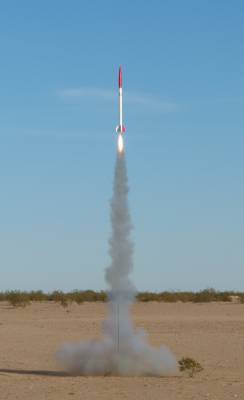

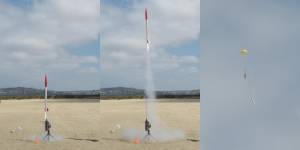

Kit Name: Aerotech - HV Arcas {Kit} (89012) [1989-]
Style: Sport

CG: 30.0000 inches from front
CP: 44.3809 inches from front
Margin: 5.53 Overstable

Parts Breakdown

• Aerotech HV Arcas Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Public Missiles Ltd. CT-2.56 Ring
• Public Missiles BP-2.5 Ring
• DIY Eye Hook #4 Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 24.00 in]
• Custom Mass Object
• Custom 1.3 oz. Ripstop Nylon (SkyAngle) Parachute (36.00 in)
• Custom Launch Lug
• Custom Launch Lug
• Custom Mass Object
• Custom Mass Object
• Custom Ring
• Custom Ring
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.00 in]
• Aerotech HV Arcas Trapezoid Fin Trapezoid Fin Set
