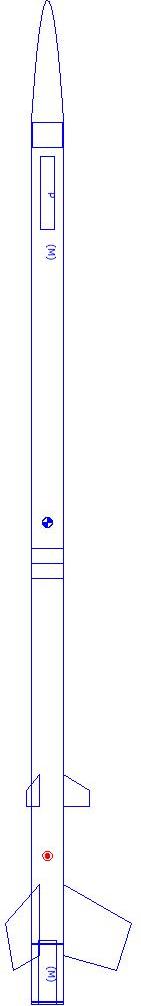

Blue Bird Zero Rocksim Design File

Comments: as drawn by Roger Banks

Designer: Estes Industries

Download inflight_estes_blue_bird_zero.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

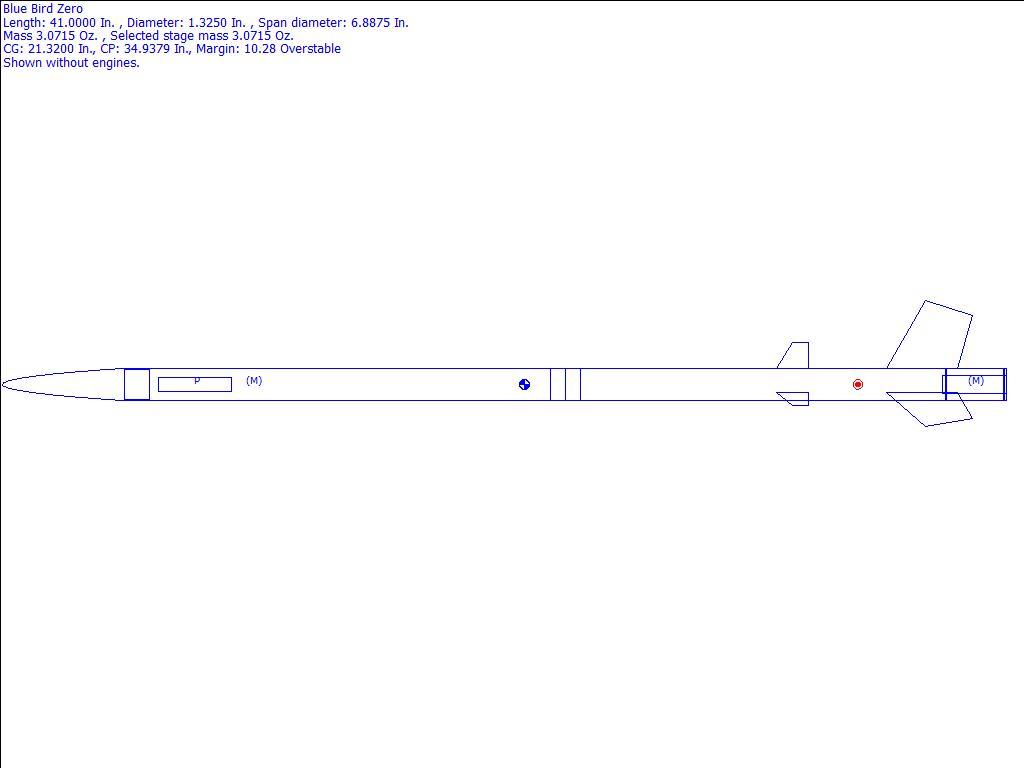

CG: 21.3200 inches from front
CP: 34.9379 inches from front
Margin: 10.28 Overstable

Parts Breakdown

• Blue Bird Zero Parabolic Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Estes Estes Ring
• Estes Polyethylene LDPE Parachute (18.00 in)
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Blue Bird Zero Trapezoid Fin Set Trapezoid Fin Set
• Blue Bird Zero Freeform Fin Set Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.62 in]
• Estes 30162-2 Ring
• Estes Engine hook Standard size Mass Object
• Estes 30125 Ring
• Estes 30125 Ring
