Designs >> Rocksim Library >>	All Rocksim Designs (1009 of 3219)Tag - Manufacturer:BSD High Power Rocketry

bsd_diablo.rkt Rocksim Design File

• Manufacturer: BSD High Power Rocketry

Download bsd_diablo.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

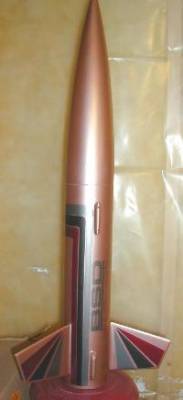

Kit Name: BSD High Power Rocketry - Diablo {Kit}

CG: 22.3394 inches from front
CP: 25.0494 inches from front
Margin: 0.68 Marginal

Parts Breakdown

• Advanced Rocketry Group Ltd. Evo Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 20.25 in]
• LOC LOC LL25 Launch Lug
• LOC LOC LL25 Launch Lug
• Public Missiles PML ST-1.0 "1"" nylon strap" Mass Object
• Custom Rip stop nylon Parachute (28.00 in)
• Custom Mass Object
• Public Missiles PML CR-13 Ring
• Public Missiles PML CR-13 Ring
• bsd_diablo.rkt Freeform Fin Set Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.00 in]
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.00 in]
