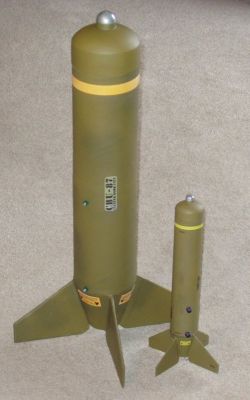

Cluster Bomb 5" Rocksim Design File

• Manufacturer: Scratch
• Style: Upscale

Comments: two Quaker Oats containers

Designer: Dick Stafford

Download scratch_upscale_estes_cluster_bomb_5in.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Scratch - Upscale BLU-97B Cluster Bomb {Scratch}
Style: Upscale

CG: 14.5000 inches from front
CP: 22.6808 inches from front
Margin: 6.54 Overstable

Parts Breakdown

• Cluster Bomb 5" Elliptical Nose Cone
• Custom Elliptical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.25 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.50 in]
• Custom Ring
• b2 Rocketry Rip stop nylon Parachute (60.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.50 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 13.50 in]
• Custom Ring
• Custom Ring
• Custom Conical Transition
• Cluster Bomb 5" Freeform Fin Set Freeform Fin Set
