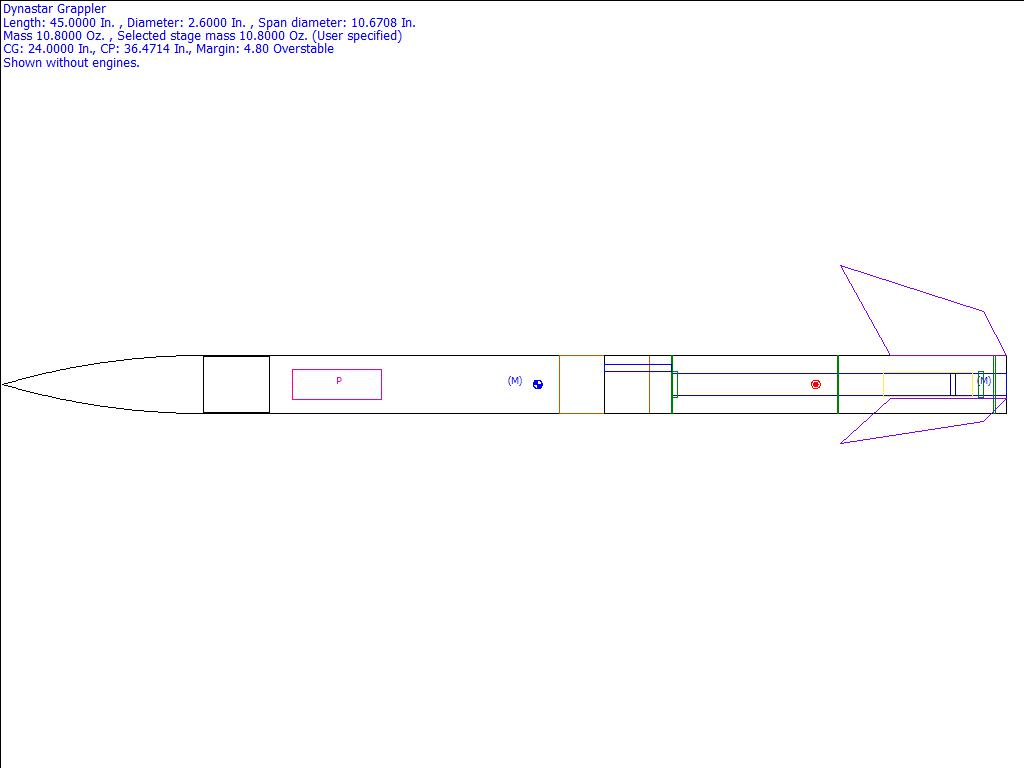

Dynastar Grappler Rocksim Design File

Contributed by Dynastar

• Manufacturer: DynaStar

Designer: John Manfredo

Download dynastar_grappler.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: DynaStar - Grappler {Kit}

CG: 24.0000 inches from front
CP: 36.4714 inches from front
Margin: 4.80 Overstable

•
•

Parts Breakdown

• Dynastar Grappler Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Estes Estes Ring
• Apogee Mass Object
• Semroc Parachute (24.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 15.00 in]
• Apogee Ring
• Apogee Ring
• Apogee Ring
• Apogee 24041 standard size engine hook Mass Object
• Apogee 13031 Ring
• Apogee 13035 Ring
• Apogee 13035 Ring
• Custom Ring
• Dynastar Grappler Freeform Fin S Freeform Fin Set
• Apogee 13056 Launch Lug
