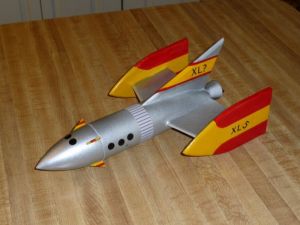

Goonball XL-5 Rocksim Design File

• Manufacturer: Estes
• Manufacturer: Scratch

Download mods_estes_goonball_xl5.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Scratch - Goonball XL5 {Modification}

CG: 5.1250 inches from front
CP: 7.0678 inches from front
Margin: 0.97 Marginal

Parts Breakdown

• Estes SpaceShipOne Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.75 in]
• Estes ESTES 2328 Launch Lug
• Goonball XL-5 Trapezoid Fin Set Trapezoid Fin Set
• Apogee Components Polyethylene LDPE Parachute (24.00 in)
• Custom Ogive Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.00 in]
• Custom Ring
• Goonball XL-5 Trapezoid Fin Set Trapezoid Fin Set
• External Pod
• Goonball XL-5 Freeform Fin Set Freeform Fin Set
• Goonball XL-5 Trapezoid Fin Set Trapezoid Fin Set
• External Pod
• Goonball XL-5 Freeform Fin Set Freeform Fin Set
• Goonball XL-5 Trapezoid Fin Set Trapezoid Fin Set
• Custom Conical Transition
