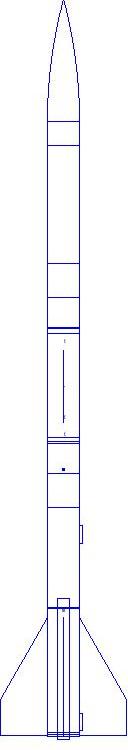

North Star 54 2-Stage Rocksim Design File

Contributed by Frank Hermes

• Manufacturer: Rocket Dynamic Systems

Designer: RDS

Download rds_north_star_2_stage.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Rocket Dynamic Systems - North Star

CG: 105.0902 inches from front
CP: 130.4739 inches from front
Margin: 4.62 Overstable

Parts Breakdown

• North Star 54 2-Stage Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 30.00 in]
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 30.00 in]
• Custom Ring
• Custom Ring
• Custom Ring
• DIY Eye Hook #4 Mass Object
• DIY Eye Hook #4 Mass Object
• Public Missiles PML SC-.75 "3/4"" shock cord" Mass Object
• Public Missiles Rip stop nylon Parachute (74.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 45.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 24.00 in]
• North Star 54 2-Stage Freeform F Freeform Fin Set
• Public Missiles PML LL-50 Launch Lug
• Public Missiles PML LL-50 Launch Lug
• Custom Ring
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 45.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 24.00 in]
• North Star 54 2-Stage Freeform F Freeform Fin Set
• Public Missiles PML LL-50 Launch Lug
• Public Missiles PML LL-50 Launch Lug
• Custom Ring
• Custom Ring
