Estes Nike Ajax (24mm) Rocksim Design File

Estes Nika Ajax modified for a 24mm motor.

• Manufacturer: Modification
• Motor Size: 24 mm
• Power: Low-Power
• Recovery: Parachute
• Style: Scale

Download oop_estes_nike_ajax_24mm_duplicate.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

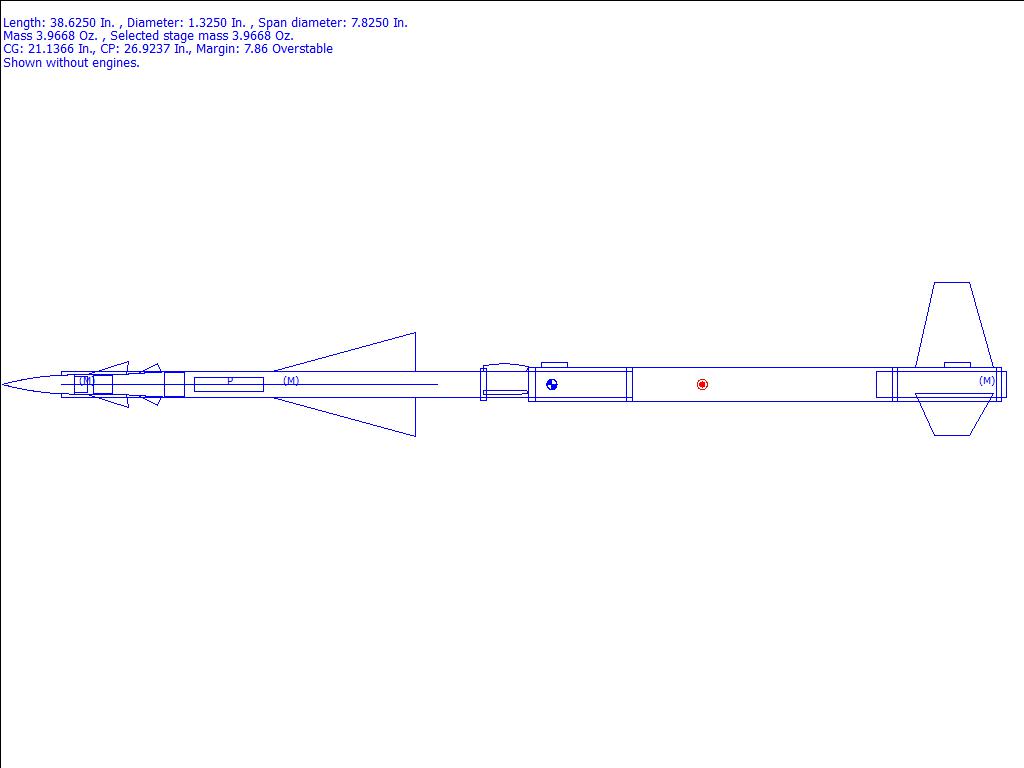

Kit Name: Modification - Nike Ajax {Modification}
Style: Scale

CG: 21.1366 inches from front
CP: 26.9237 inches from front
Margin: 7.86 Overstable

Parts Breakdown

• marlin_oop_estes_nike_ajax_24mm. Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.50 in]
• marlin_oop_estes_nike_ajax_24mm. Trapezoid Fin Set
• Custom Mass Object
• Custom Conical Transition
• marlin_oop_estes_nike_ajax_24mm. Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 14.00 in]
• marlin_oop_estes_nike_ajax_24mm. Trapezoid Fin Set
• oop_estes_nike_ajax_24mm.rkt Fre Freeform Fin Set
• Estes Polyethylene LDPE Parachute (16.00 in)
• LOC Precision SC-250 1/4 In Elastic shock cord Mass Object
• oop_estes_nike_ajax_24mm.rkt Tra Trapezoid Fin Set
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.00 in]
• Estes Engine hook Standard size Mass Object
• Custom CR50/55 Ring
• Custom CR50/55 Ring
• oop_estes_nike_ajax_24mm.rkt Tra Trapezoid Fin Set
• Estes ESTES 2328 Launch Lug
• Estes ESTES 2328 Launch Lug
• Custom CR50/55 Ring
• Custom CR50/55 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.00 in]
