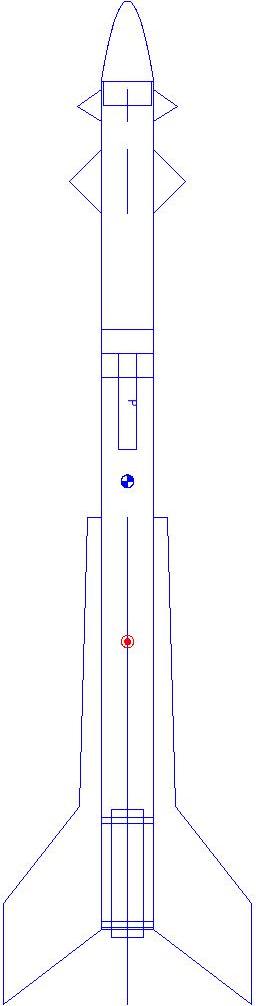

Python 4 Rocksim Design File

Download scratch_descon_python4_stabilized.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 15.0000 inches from front
CP: 20.0075 inches from front
Margin: 3.06 Overstable

Parts Breakdown

• Big Bertha Parabolic Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.50 in]
• Estes Estes Ring
• Python 4 Trapezoid Fin Set Trapezoid Fin Set
• Python 4 Trapezoid Fin Set Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Python 4 Freeform Fin Set Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.00 in]
• Public Missiles CR-1.5-1.1 Ring
• Public Missiles CR-1.5-1.1 Ring
• Estes Polyethylene LDPE Parachute (18.00 in)
