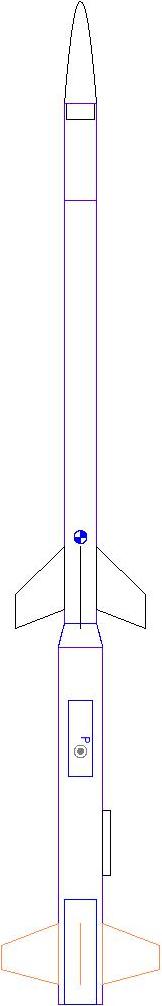

Quest Terrier-Orion Rocksim Design File

Contributed by Ron Watkins

Download quest_terrier_orion_d.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

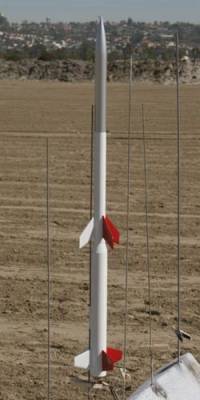

Kit Name: Quest - Terrier-Orion {Kit}

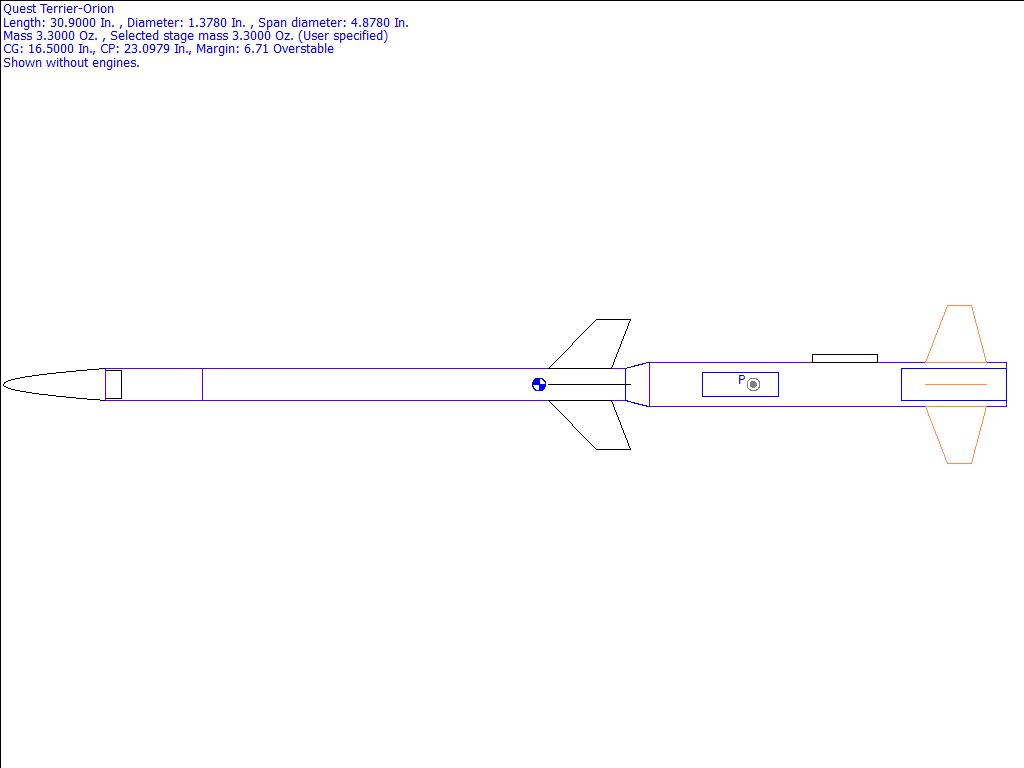

Diameter: 1.3800 inches
Length: 30.1000 inches
Style: Scale

CG: 16.5000 inches from front
CP: 23.0979 inches from front
Margin: 6.71 Overstable

Parts Breakdown

Quest Terrier-Orion Parabolic Nose Cone

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 13.00 in]

Quest Terrier-Orion Freeform Fin Freeform Fin Set

Custom Conical Transition

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 11.00 in]

Quest Terrier-Orion Trapezoid Fi Trapezoid Fin Set

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.25 in]

BalsaMachining.com LL316-1200 Launch Lug

LOC/Precision Rip stop nylon Parachute (14.00 in)
