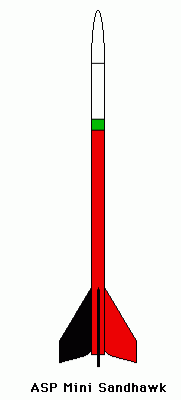

Sandia Sandhawk Rocksim Design File

Contributed by Joe Policy

• Designer: Andy Jackson
• Manufacturer: Aerospace Specialty Products
• Motor Size: 13 mm
• Power: Low-Power
• Recovery: Streamer
• Scale: Sandia Sandhawk
• Skill Level: 1
• Style: Scale

Designer: Aerospace Specialty Products

Download asp_sandia_sandhawk.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

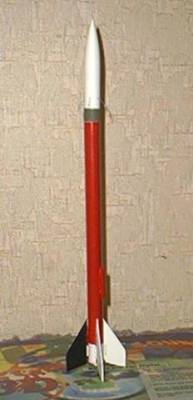

Kit Name: Aerospace Specialty Products - Sandia Sandhawk {Kit} (KSAN-13)
Diameter: 0.5410 inches
Length: 12.3400 inches
Style: Scale

CG: 6.4202 inches from front
CP: 10.3615 inches from front
Margin: 7.25 Overstable

Parts Breakdown

• Sandia Sandhawk Ogive Nose Cone
• FlisKits SE-M Screw Eye - Medium Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.90 in]
• Custom Ring
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.50 in]
• Custom Ring
• Custom Mass Object
• Custom Mass Object
• Custom Polyethylene LDPE Streamer (0.0012 in)
• Estes ESTES 2321 Launch Lug
• Sandia Sandhawk Freeform Fin Set Freeform Fin Set
