Shadow Composites Raven Rocksim Design File

• Manufacturer: Shadow Composites

Designer: Dave Triano

Download shadowaero_raven.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

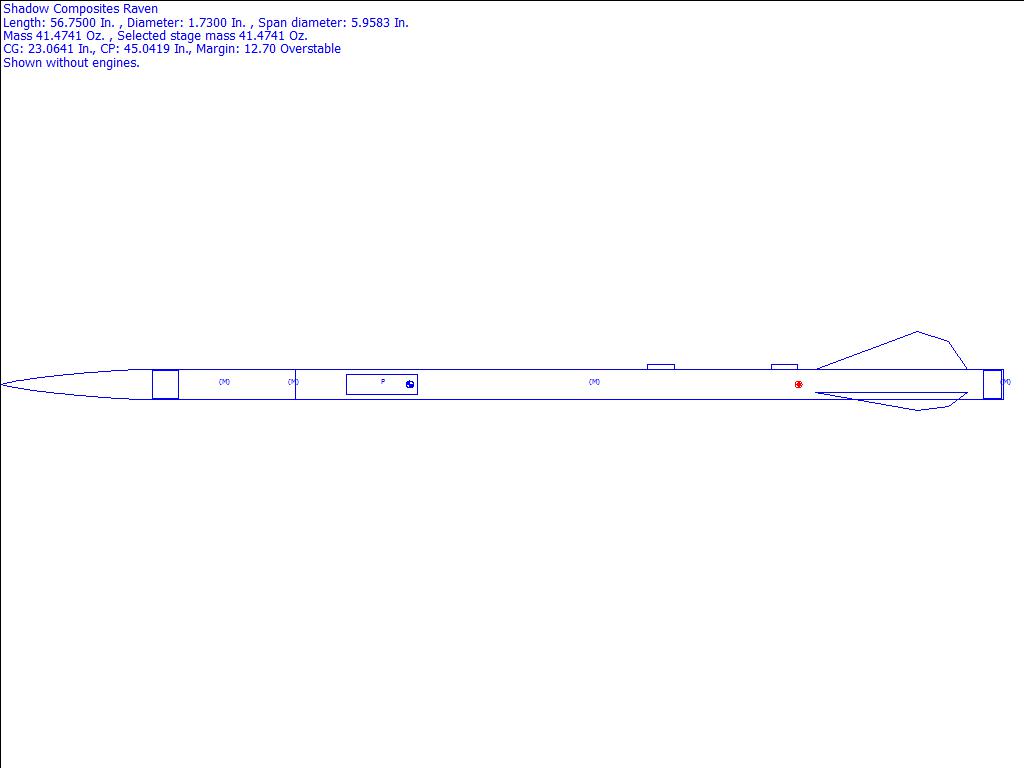

Kit Name: Shadow Composites - Raven

CG: 23.0641 inches from front
CP: 45.0419 inches from front
Margin: 12.70 Overstable

Parts Breakdown

• Shadow Composites Raven Haack Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.10 in]
• Custom Rip stop nylon Parachute (24.00 in)
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.00 in]
• Shadow Composites Raven Freeform Freeform Fin Set
• Custom Launch Lug
• Custom Launch Lug
• Shadow 40mm CT Mass Object
• Custom Mass Object
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 40.00 in]
