Designs >> Rocksim Library >>	All Rocksim Designs (2882 of 3219)Tag - Manufacturer:The Launch Pad

tlp_perseus.rkt Rocksim Design File

Contributed by Kathy Miller

• Manufacturer: The Launch Pad

Download tlp_perseus.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

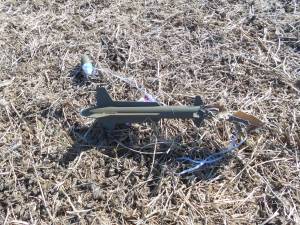

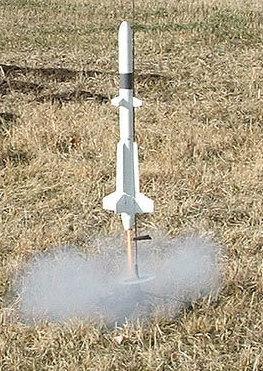

Kit Name: The Launch Pad - Perseus {Kit}

CG: 8.1955 inches from front
CP: 18.4943 inches from front
Margin: 6.29 Overstable

Parts Breakdown

• tlp_perseus.rkt Elliptical Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.25 in]
• Estes Estes Ring
• Apogee 19115 Ring
• tlp_perseus.rkt Freeform Fin Set Freeform Fin Set
• Custom Mylar Parachute (16.05 in)
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.25 in]
• tlp_perseus.rkt Freeform Fin Set Freeform Fin Set
• tlp_perseus.rkt Freeform Fin Set Freeform Fin Set
• Custom Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Custom Ring
• Custom Ring
• Custom Ring
