Viking Rocksim Design File

• Manufacturer: Estes
• Recovery: Streamer
• Skill Level: 1
• Style: Sport

Comments: The original kit had a plastic nose cone. The current kits use a balsa nose cone, instead. This version uses the five-fin arrangement shown in the instructions. The streamer indicated is what comes in the kit. I recommend doubling the length shown.

Designer: Estes Industries Model 1949

Download Estes_Viking.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

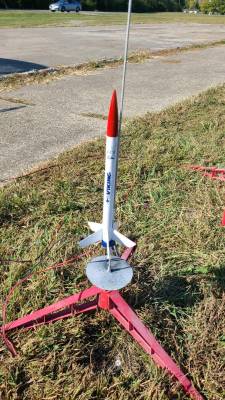

Kit Name: Estes - Viking {Kit} (1949) [1986-]

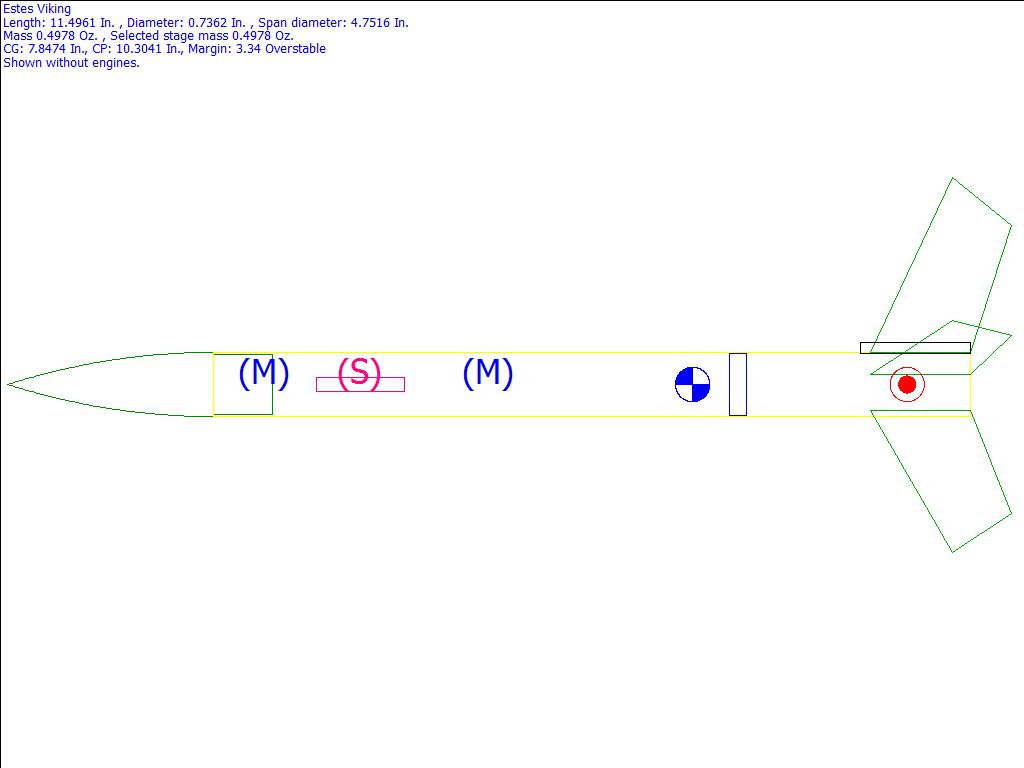

Diameter: 0.7400 inches
Length: 12.1000 inches
Style: Sport

CG: 7.8474 inches from front
CP: 10.3041 inches from front
Margin: 3.34 Overstable

Parts Breakdown

• Estes Viking Ogive Nose Cone
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.66 in]
• Estes 30162-2 Ring
• Custom Polyethylene LDPE Streamer (0.0012 in)
• Custom Mass Object
• Estes Viking Freeform Fin Set Freeform Fin Set
• Estes ESTES 2321 Launch Lug
