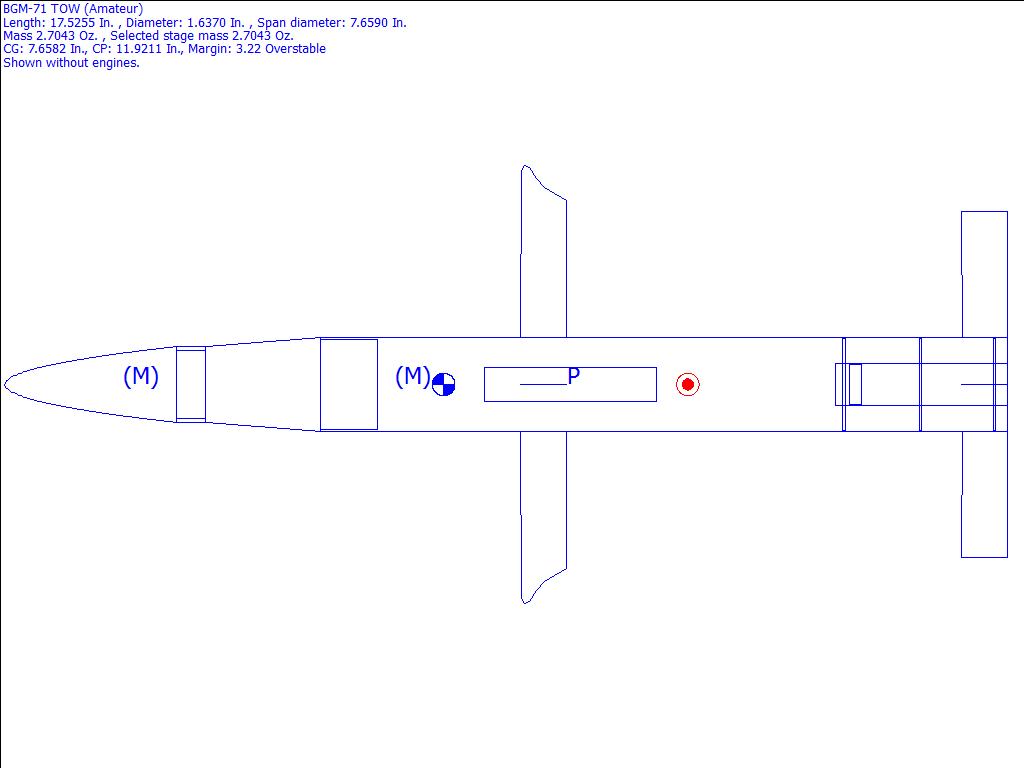

What If BGM-71 TOW (Amateur) Rocksim Design File

Comments: This is my entry for the Estes fall 2000 Quarterly Design Contest.

Designer: Jonathan Elder

Download whatif_tow_amat.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 7.6582 inches from front
CP: 11.9211 inches from front
Margin: 3.22 Overstable

Parts Breakdown

• What If BGM-71 TOW (Amateur) Par Nose Cone
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 0.50 in]
• Custom Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Estes 30162-2 Ring
• What If BGM-71 TOW (Amateur) Fre Freeform Fin Set
• What If BGM-71 TOW (Amateur) Fre Freeform Fin Set
• Custom Mass Object
• Estes Polyethylene LDPE Parachute (18.00 in)
• Apogee CR-50-60 Ring
• Apogee CR-50-60 Ring
• Apogee CR-50-60 Ring
