Designs >> Rocksim Library >>	All Rocksim Designs (3178 of 3219)

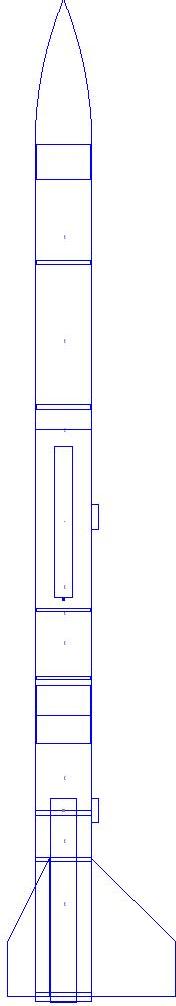

What If VidRoc Rocksim Design File

Comments: Level III Certification Rocket

Designer: John Pretto

Download whatif_vidroc.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 100.8736 inches from front
CP: 136.3142 inches from front
Margin: 3.73 Overstable

Parts Breakdown

• What If VidRoc Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 48.00 in]
• DIY Eye Hook #4 Mass Object
• Custom Mass Object
• Custom Ring
• Custom Ring
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 48.00 in]
• Custom Ring
• Custom Rip stop nylon Parachute (152.14 in)
• Custom Ring
• Custom Ring
• Custom Launch Lug
• Custom Mass Object
• Custom Mass Object
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 48.00 in]
• What If VidRoc Trapezoid Fin Set Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 34.37 in]
• Custom Mass Object
• Custom Mass Object
• Custom Ring
• Custom Ring
• Custom Launch Lug
• Custom Mass Object
• Custom Ring
