Yank Enterprises (LOC) Concept One (4") Rocksim Design File

Comments: A built kit will weigh aprox. 80oz.

Designer: Yank Enterprises

Download yank_4_concept_one.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

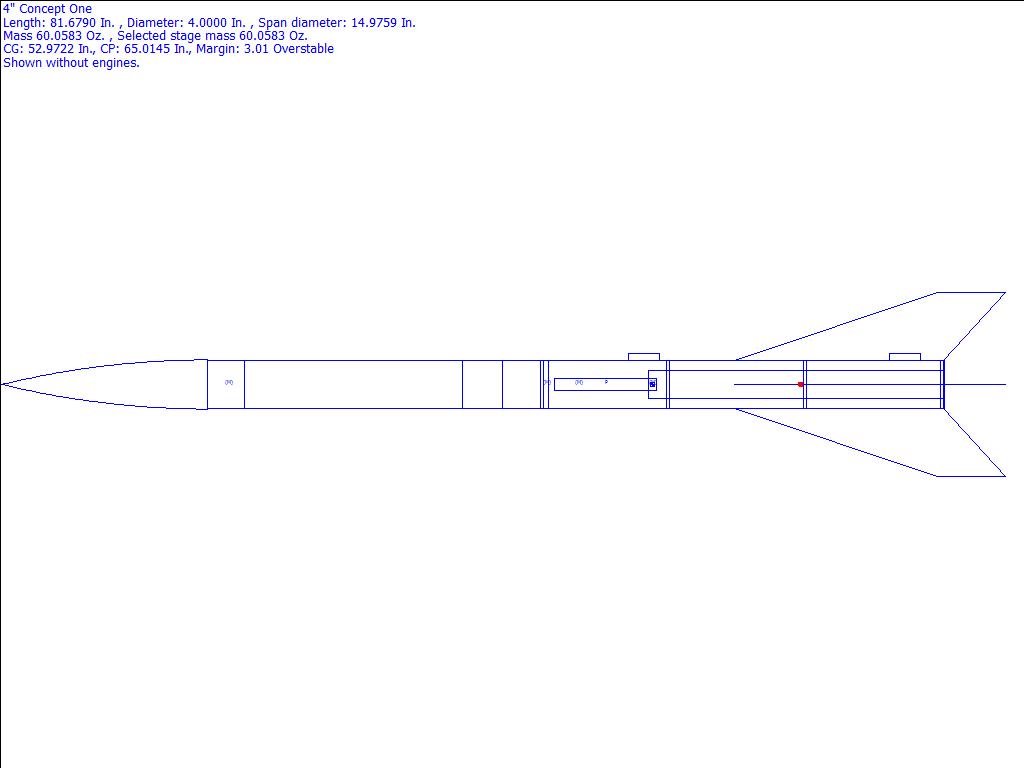

CG: 52.9722 inches from front
CP: 65.0145 inches from front
Margin: 3.01 Overstable

Parts Breakdown

1-2PatriotRedlineEllis.rkt Ogive Nose Cone

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 24.00 in]

Custom Ring

Custom Mass Object

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 36.00 in]

Custom Ring

Custom Ring

Custom Ring

Custom Mass Object

Custom Rip stop nylon Parachute (50.00 in)

DIY Eye Hook #4 Mass Object

Custom Launch Lug

Custom Launch Lug

Custom Ring

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 24.00 in]

DIY Eye Hook #4 Mass Object

Yank Enterprises (LOC) Concept O Freeform Fin Set
