Designs >> Rocksim Library >>	All Rocksim Designs (1423 of 3219)Tag - Manufacturer:Estes

Phoenix Rocksim Design File

• Manufacturer: Estes

Download mods_estes_38mm_phoenix.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Estes - Phoenix {Kit} (1380) [2001-2004]

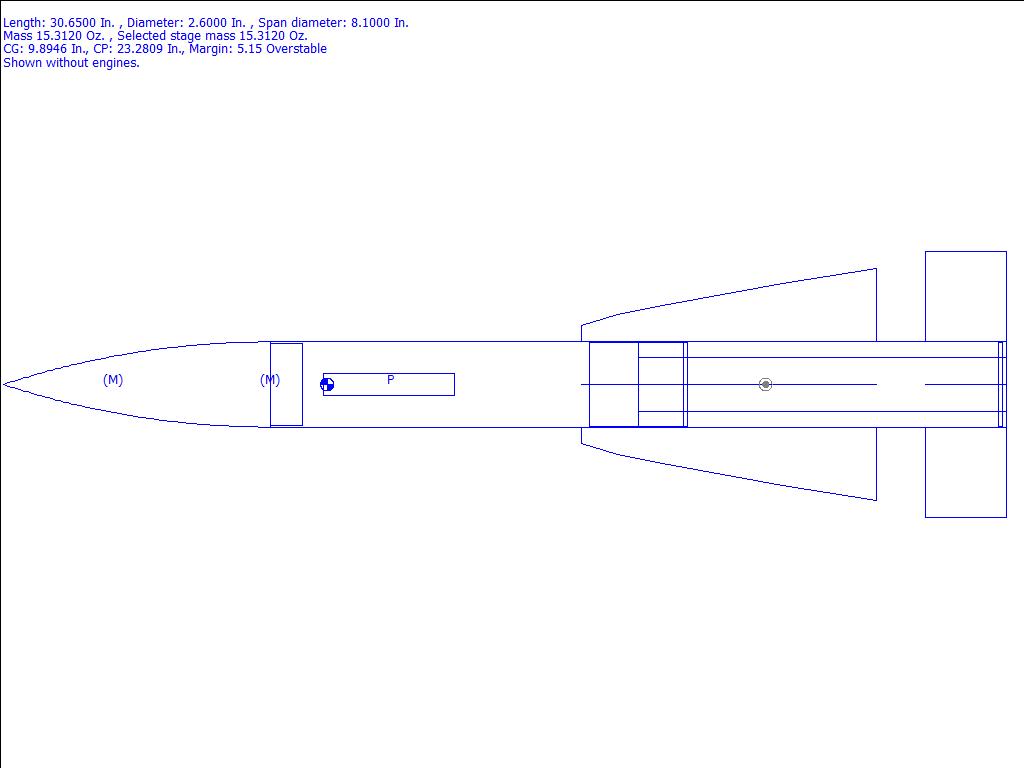

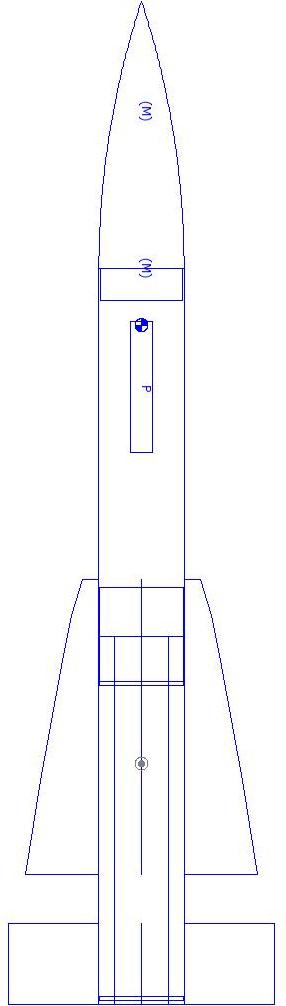

CG: 9.8946 inches from front
CP: 23.2809 inches from front
Margin: 5.15 Overstable

Parts Breakdown

• AIM-54 Phoenix Ogive Nose Cone
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 11.25 in]
• Estes Estes Ring
• Custom Rip stop nylon Parachute (24.00 in)
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 11.25 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 11.25 in]
• Estes Phoenix Trapezoid Fin Set Trapezoid Fin Set
• Estes Phoenix Freeform Fin Set Freeform Fin Set
• Custom Ring
• Custom Ring
