Arcus Rocksim Design File

Contributed by Ken Tsai

• Manufacturer: Madcow Rocketry

Download madcow_arcas.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

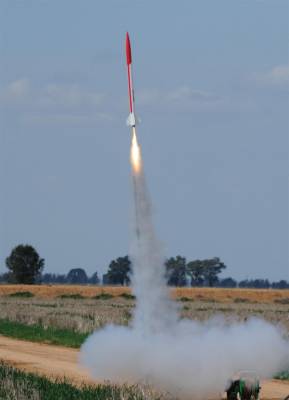

Kit Name: Madcow Rocketry - Arcas (Fiberglass) {Kit}

CG: 34.0826 inches from front
CP: 40.2817 inches from front
Margin: 2.38

Parts Breakdown

• Arcus Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Custom Ring
• Public Missiles HDWE-EYE-1/8 1/8x24 Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 41.50 in]
• Custom Ring
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.00 in]
• Giant Leap SLIM29 Slimline 29mm Retainer Mass Object
• Public Missiles HDWE-EYE-1/8 1/8x24 Mass Object
• Arcus Freeform Fin Set Freeform Fin Set
• Public Missiles Rip stop nylon Parachute (30.00 in)
• Giant Leap Mass Object
• LOC Precision SCTN-20 Tubular Nylon 9/16 In x 20 Ft Mass Object
• LOC Precision Mass Object
