MCR JayHawk Rocksim Design File

Contributed by Frank Smith

• Manufacturer: Madcow Rocketry
• Recovery: Parachute
• Style: Scale

Designer: Design entered by Mike Stoop, Mad Cow Rocketry

Download madcow_aqm-37-jayhawk.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

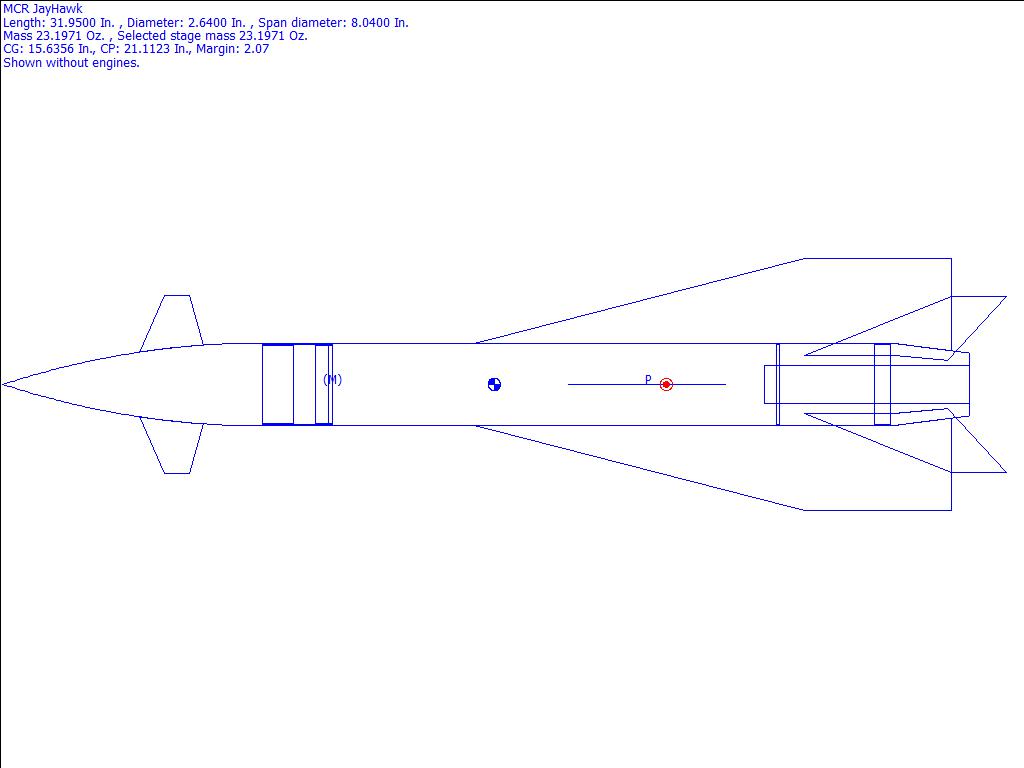

Kit Name: Madcow Rocketry - AQM-37 Jayhawk {Kit} (K-109)
Diameter: 2.6000 inches
Length: 30.7500 inches
Style: Scale

CG: 15.6356 inches from front
CP: 21.1123 inches from front
Margin: 2.07

Parts Breakdown

• Madcow DX3 Ogive Nose Cone
• SubAssembly
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.25 in]
• BalsaMachining.com BHC80-W Ring
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 0.43 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 20.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.50 in]
• BalsaMachining.com CR52H80-W Ring
• Public Missiles Rip stop nylon Parachute (30.00 in)
• MCR JayHawk Trapezoid Fin Set Trapezoid Fin Set
• MCR JayHawk Trapezoid Fin Set Trapezoid Fin Set
• MCR JayHawk Trapezoid Fin Set Trapezoid Fin Set
• Custom Conical Transition
