Fireball XL5 Freeform Fin Set Freeform Fin Set| Manufacturer: | Public Missiles | | Part Number: | FIN-B-07 | | Style: | Freeform Fin Set | | Material: | Balsa |

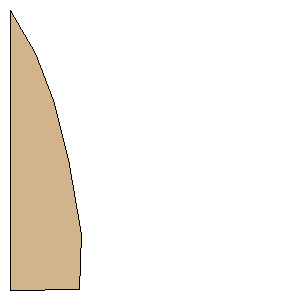

Download as PDF | Point 1: | (0.0000 mm, 203.3130 mm) | | Point 2: | (50.8000 mm, 203.2000 mm) | | Point 3: | (52.1657 mm, 162.9700 mm) | | Point 4: | (42.2204 mm, 108.2710 mm) | | Point 5: | (31.2807 mm, 65.5065 mm) | | Point 6: | (18.3518 mm, 31.6926 mm) | | Point 7: | (0.0000 mm, 0.0000 mm) | | Width: | 8.0044 inches (203.3130 mm) | | Height: | 8.0044 inches (203.3130 mm) |
