Fireball XL5 Rocksim Design File

• Manufacturer: Scratch

Comments: updated with RS-9

Designer: Dick Stafford

Download scratch_fireball_xl5_rs9.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

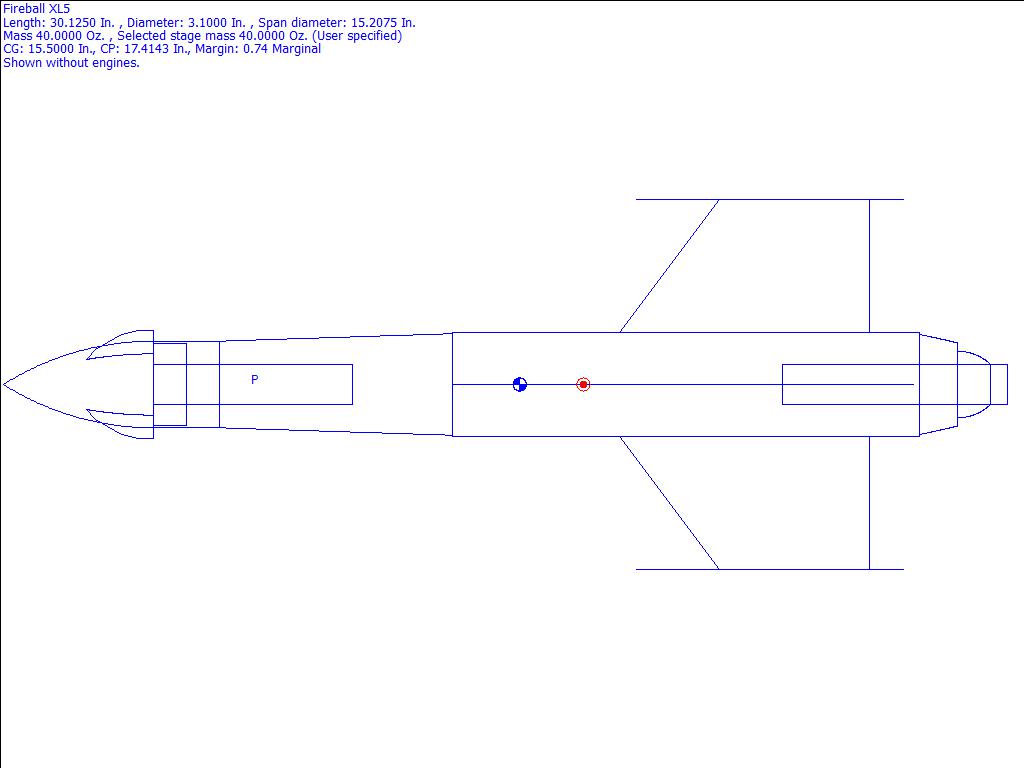

Kit Name: Scratch - Fireball XL5 {Scratch}

CG: 15.5000 inches from front
CP: 17.4143 inches from front
Margin: 0.74 Marginal

Parts Breakdown

• Fireball XL5 Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.00 in]
• Fireball XL5 Freeform Fin Set Freeform Fin Set
• LOC/Precision Rip stop nylon Parachute (35.98 in)
• Custom Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 14.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.75 in]
• Fireball XL5 Freeform Fin Set Freeform Fin Set
• External Pod
• Fireball XL5 Freeform Fin Set Freeform Fin Set
• Fireball XL5 Freeform Fin Set Freeform Fin Set
• External Pod
• Fireball XL5 Freeform Fin Set Freeform Fin Set
• Fireball XL5 Trapezoid Fin Set Trapezoid Fin Set
• Custom Parabolic Transition
• Custom Ogive Transition
