DynaStar Firefox SHX

DynaStar - Firefox SHX {Kit}

Contributed by Jewel B. Butler Jr.

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar
Manufacturer: DynaStar

Brief:
This is a replica of the Firefox jet that was in the Clint Eastwood movie.It has offset tubes; that was a plus for me. It comes with a huge 32 inch parachute.

Construction:

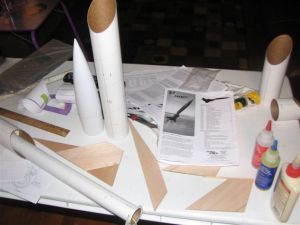

The parts list:

  • 1 BT-50 3.75
  • 2 BT-80 18
  • 1 BT-60 18
  • 1 24 mm engine block
  • 2 Crescent moon die cut pieces(I wish these were a little more sturdy or even wood)
  • 1 1/4" Launch Lug 3.0
  • 1 PNC-80 nose cone
  • 2 wing sheets (the wings have to be glued together)
  • 1 dorsal fin
  • 2 tail fins
  • 1 D size engine hook
  • 1 32 inch parachute with cotton string and eyestickers for holes
  • 1 8ft long piece of Kevlar® shock cord
  • 1 instruction sheets and marking guide
  • 1 spruce stick

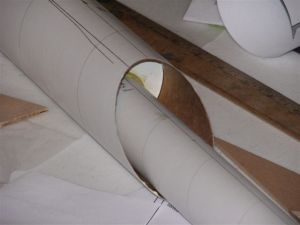

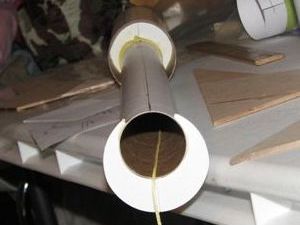

Instructions need to be read twice then follow them carefully to the letter. The instructions are easy for an experienced builder. The guide they provide is the only way to line up the fins properly. I used CA on all the fins. I also used the double glue method of applying some glue, let almost dry, then apply some more just before you attach the wings and fins.


Finishing:
I primed and sanded before painting black and 5 coats of clear. I attached decals then shot another coat of clear on top of them.

Construction Rating: 5 out of 5

Flight:
I used the D12-3 on first flight. It was underpowered so the E30 was the next step up. It got a great boost and I do mean it soared like a bird straight and true. I used a 5" x 5" sheet of Nomex®. The dog barf is a drag man.

Recovery:
I used the duct tape on the shock cord to prevent zippering. The materials are top notch. Read the instructions twice and it will go OK. Use new blade when you cut the tubes. You might want to reef the chute or put a vent hole in it because that is a pretty big chute. It will drift. You would cry as your $50.00 drifts out of sight. Be careful of those tip on the two tail fins.

Flight Rating: 5 out of 5

Summary:
The rocket is a good test of ones building skills so don't be afraid to give it a shot. It is a beautiful rocket when finished. You will get many complements about it if you take your time. My main con would be that the fins should be laser cut for a clean look although mine came out OK.

Overall Rating: 5 out of 5
