Scratch Model Rocket Locator

Scratch - Model Rocket Locator {Scratch}

Contributed by Jerry Baumeister

Manufacturer: Scratch

The following circuits are very simple to make. For the first circuit, use a small piece of perfboard to mount the components.

The locator will blink the LEDs alternately and sound a loud beeping tone....very effective for locating anything lost in the weeds or in the dark.

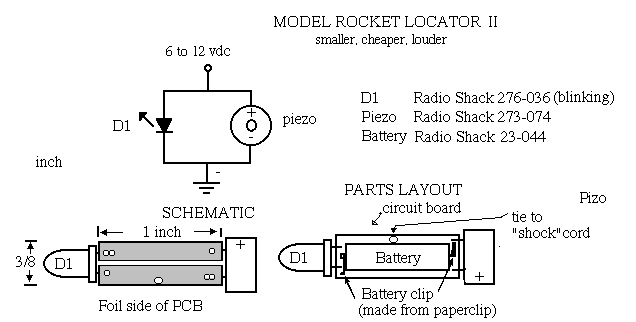

The second locator uses a small piece of circuit board. Etch a small grove down the middle on the foil side of the board, drill the holes and solder the components where shown.

For a FM Radio Frequency Rocket locator click here

[Schematic]

[Schematic]
