Manufacturer: | Scratch |
Brief:
This is my second rocket based on an
Aquapod water bottle. It
was inspired by the once-proposed
Orion
nuclear spacecraft, however, it only fits into a not-even-close-to-scale
category.
Construction:
Materials included:
On this model, prepping the Aquapod included boring the hole for the 24mm motor tube and 5 holes for the shock absorbers (6mm tubes). These small holes were made in the flat tips of the protrusions on the bottle's base. I also sliced off the top, leaving a hole to accommodate the scrap ~1.5" cardboard tubing that I had on hand. This would vary depending on the tube used. I was hoping this larger tube would make the chute easier to pack.
The inside of the rocket consists of the 24mm motor tube centered in the larger tube with foamboard rings. The elastic shock cord is attached to the motor tube through these rings. This unit and the 6mm tubes were attached to the bottle using Liquid Nails.
The fins were cut from Lexan using a diamond cut-off wheel and are also attached with Liquid Nails. The launch lug is a section of the body of a small, clear ink pen. It is mounted fairly far out on one fin since it has to clear the fat body.
The nose cone is a posterboard cone which fits against the bottle. I built the shoulder from a piece of the aforementioned tubing and cardstock. I added lead shot and epoxy based on the results of my RockSim modeling. There are only three fins mounted on the bottle which naturally would accommodate 5 fins, thus they are not symmetric. I modeled them as three instances of a single fin and let RockSim evaluate the stability accordingly.
Finishing:

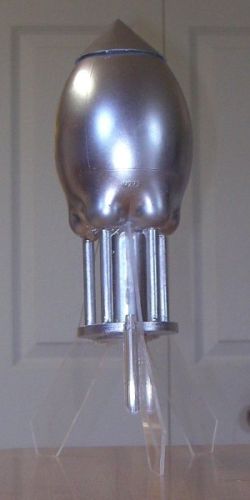

The rocket was painted silver.

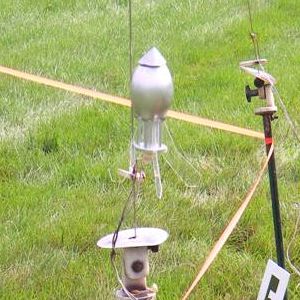

Flight and
Recovery:
I first friction fit the C11-3 motor and packed the 24mm tube with dog barf. I
then picked a large plastic chute from the range box (never measured it). It
still was tough to get into the Orion but I thought it was required (as I
should have modeled the descent rate, too, I reckon). The C11s high average
impulse got it going nicely. Ejection looked to be around apogee, but the chute
never opened. Luckily the grass was long and it only lost a little paint. Note
to self: if you're going to (re)start using plastic chutes, start packing some
powder to dust them!
Summary:
This is just another odd looking Aquapod-based rocket. Now off to the Dungeon
to work on the next one...
