Horizon 38/29 Rocksim Design File

Contributed by Chuck Pierce

• Family: BSD : Horizon
• Manufacturer: BSD High Power Rocketry

Comments: Built stock and has the 29mm adapter loaded

Designer: Scott Binder

Download bsd_horizon38_29.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: BSD High Power Rocketry - Horizon {Kit}

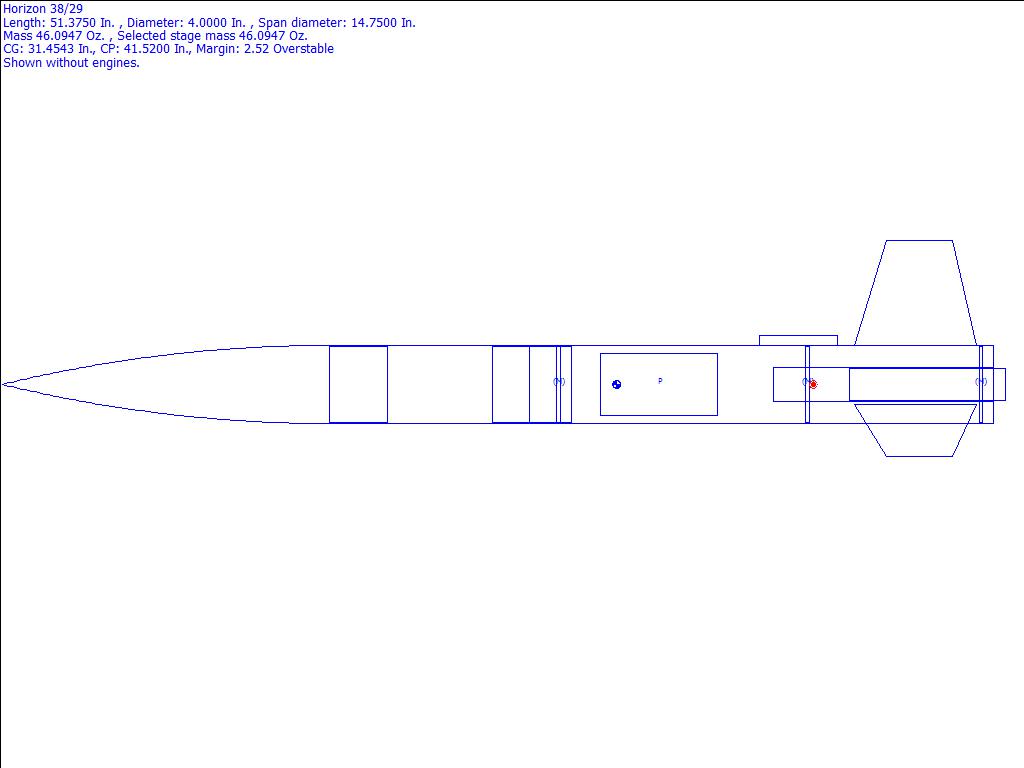

CG: 31.4543 inches from front
CP: 41.5200 inches from front
Margin: 2.52 Overstable

Parts Breakdown

• Army Hawk (4) Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.25 in]
• Public Missiles Ltd. CT-3.90 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 23.75 in]
• Public Missiles CBP-3.9 Ring
• Custom Mass Object
• Custom Mass Object
• Public Missiles Rip stop nylon Parachute (36.00 in)
• LOC LOC LL50 Launch Lug
• Horizon 38/29 Trapezoid Fin Set Trapezoid Fin Set
• Public Missiles CR-3.9-1.5 Ring
• Public Missiles CR-3.9-1.5 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 11.25 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.00 in]
• Custom Mass Object
