Atomic Rocksim Design File

Contributed by Neal Higgins

• Manufacturer: Custom Rockets
• Motor Size: 18 mm
• Power: Low-Power
• Recovery: Parachute
• Skill Level: 1
• Style: Sport

Comments: Fake Fin sets were added for stability and airflow calculations

Designer: Custom

Download custom_atomic.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

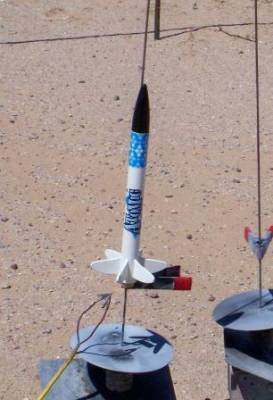

Kit Name: Custom Rockets - Atomic {Kit} (10047)
Diameter: 0.9760 inches
Length: 11.7500 inches
Style: Sport

CG: 6.1307 inches from front
CP: 10.0648 inches from front
Margin: 4.03 Overstable

Parts Breakdown

• Atomic Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.00 in]
• Custom BT 50 to BT 20 Ring
• Custom BT 50 to BT 20 Ring
• Custom Mass Object
• Estes Polyethylene LDPE Parachute (12.00 in)
• Estes ESTES 2321 Launch Lug
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.76 in]
• Estes Engine hook Standard size Mass Object
• Estes 30162-2 Ring
• Atomic Freeform Fin Set Freeform Fin Set
