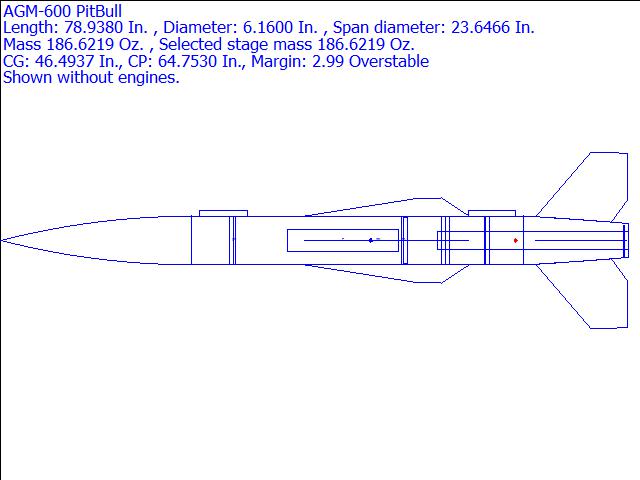

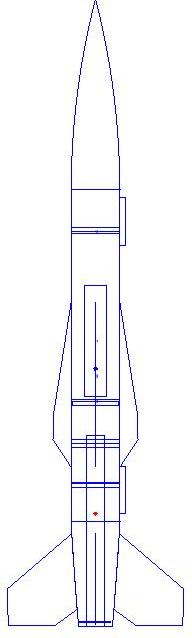

AGM-600 PitBull Rocksim Design File

Visit www.publicmissiles.com to download AGM600-54mm-A.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 46.4937 inches from front
CP: 64.7530 inches from front
Margin: 2.99 Overstable

Parts Breakdown

• AGM600-54mm-A.rkt Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 41.75 in]
• AGM600-54mm-A.rkt Trapezoid Fin Trapezoid Fin Set
• Public Missiles CBP-6.0 Ring
• Public Missiles Rip stop nylon Parachute (84.00 in)
• Public Missiles HDWE-UBOLT-SET Ubolt for FNCs Mass Object
• Public Missiles LL-0.75 Launch Lug
• Public Missiles LL-0.75 Launch Lug
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.00 in]
• Public Missiles BP-6.0 Ring
• Public Missiles HDWE-KL-2.0 large Mass Object
• Custom Parabolic Transition
• AGM600-54mm-A.rkt Freeform Fin S Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 24.00 in]
• Public Missiles CR-3.9-2.1 Ring
• Public Missiles CCR-6.0-2.1 Ring
• Public Missiles CR-6.0-2.1 Ring
