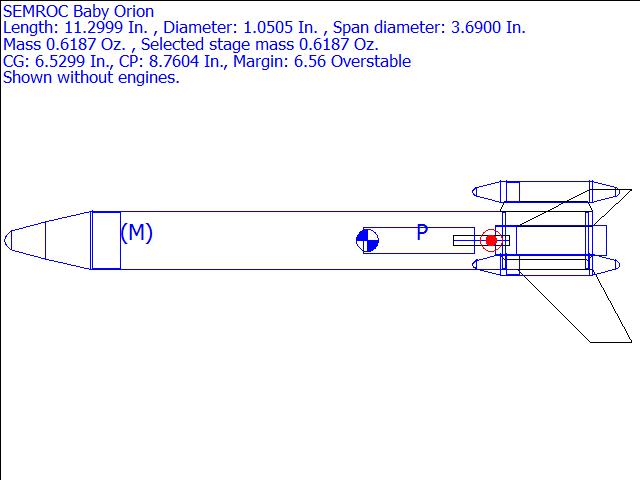

SEMROC Baby Orion Rocksim Design File

Comments: KA-31

Designer: Centuri Engineering (1971) SEMROC Astronautics (2010) BARCLONE Rocketry (2010)

Visit www.semroc.com to download Semroc-Baby%20Orion.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 6.5299 inches from front
CP: 8.7604 inches from front
Margin: 6.56 Overstable

Parts Breakdown

• Semroc-Baby Orion.rkt Parabolic Nose Cone
• Custom Conical Transition
• Custom Conical Transition
• Custom Conical Transition
• Semroc SE-10 Screw Eye-Large Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.00 in]
• Semroc-Baby Orion.rkt Trapezoid Trapezoid Fin Set
• External Pod
• Semroc-Baby Orion.rkt Parabolic Nose Cone
• Custom Conical Transition
• Custom Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.50 in]
• Custom Conical Transition
• Custom Conical Transition
• Custom Parabolic Transition
• Semroc-Baby Orion.rkt Freeform F Freeform Fin Set
• External Pod
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.00 in]
• Semroc-Baby Orion.rkt Trapezoid Trapezoid Fin Set
• External Pod
• Semroc-Baby Orion.rkt Parabolic Nose Cone
• Custom Conical Transition
• Custom Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.50 in]
• Custom Conical Transition
• Custom Conical Transition
• Custom Parabolic Transition
• External Pod
• Semroc-Baby Orion.rkt Parabolic Nose Cone
• Custom Conical Transition
• Custom Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.50 in]
• Custom Conical Transition
• Custom Conical Transition
• Custom Parabolic Transition
• Semroc Polyethylene LDPE Parachute (12.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.00 in]
• Custom Ring
• Custom Ring
• Custom Ring
